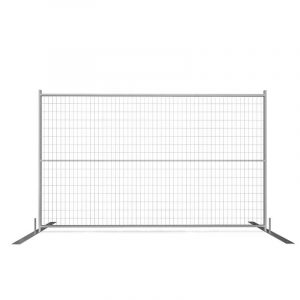

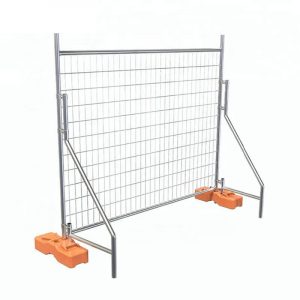

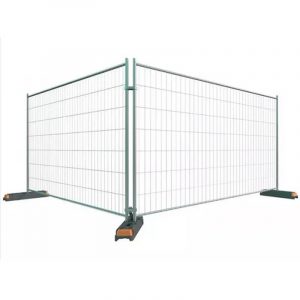

Removable Outdoor Welded Temporary Construction Fence Panels
Product Name: Galvanized temporary welded fence
Welded wire mesh size:60*150mm, 50*50mm, 50*75mm, etc.
Accessory:Clamps
Fence feet:Plastic feet inside filled with concrete
Surface: hot dipped galvanized, powder coated.
Packaging: Fence Panel: plastic film and metal pallet;
Fence Feet: plastic film and wooden pallets;
Fence Clamp: plastic bag + carton box
Ask for quoteDescription
Temporary welded fence is a very popular type of temporary fence in Australia, Canada and North America. The main feature of the temporary welded fence is a solid frame welded by a square tube or a round tube, which can be quickly installed with only a few nuts, bolts and saddle clamps. No need to dig holes, which is convenient for emergency situations. As a cost-effective type of fence, temporary welded fences are very suitable for isolation and protection of construction sites, accident sites, municipal engineering, and commercial areas.
Advantages
- Galvanized or PVC coated anti-corrosion and anti-rust
- Easy to installed and take down
- Easy to transport and store
- With good applicability even though on rugged ground
- 360 degree firmly welded, high strength
Specs
| Welded Temporary Fence Common Specification | |
| Wire Gauge | 3.2mm, 3.5mm, 4.0mm, 4.5mm or as request |
| Opening Mesh | 60*150mm, 75*75mm, 75*100mm, 50*100mm etc |
| Fence Frame Pipe | 32mm O.D.,38mm O.D., 40mm O.D., 42mm O.D., 48mm O.D. etc. |
| Regular Size | 2.1*2.4m, 1.8*2.4m, 2.1*2.9m, or as request |
| Plastic Feet | 600*220*150mm, or 580*245*130mm |
| Surface Treatment | Hot-dipped galvanized or electric galvanized |
| Part | Welded mesh Panel, Round Tube Frames, Plastic feet Clamp, Stay\Support |
Popular Size
| Wire Diameter | 3mm |
| Mesh Opening | 60x150mm |
| Panel Size | 2100x2400mm |
| Vertical Pipe Size | O.D. 32mmx2.0mm, 150mm left at top and bottom |
| Horizontal Pipe Size | O.D. 32mmx2.0mm |
| Base Plate | 600x220x150mm |
| Part | Welded mesh Panel, Round Tube Frames, Plastic feet Clamp, Stay\Support |
Product Detail
Link Accessories
Packaging &Shipping
Application
temporary welded fence is ideal for isolation & protection work of construction sites, accidents scene, municipal engineering, commercial area.
