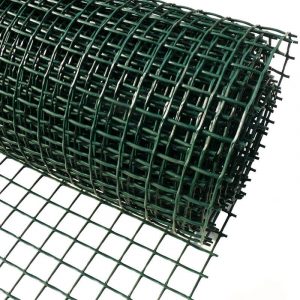

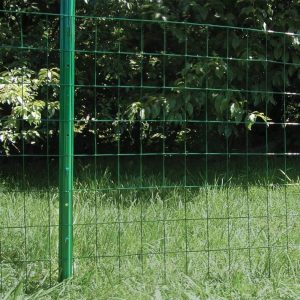

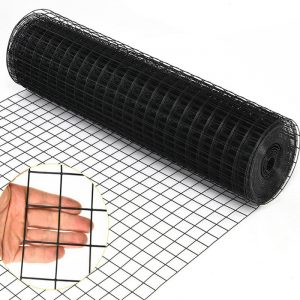

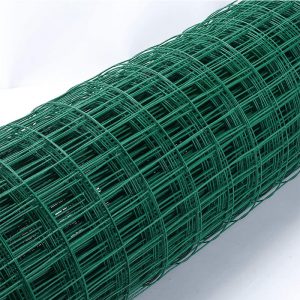

PVC Coated Welded Wire Garden Fence
Product Name: PVC Coated Welded Wire Mesh Fence
Material:Low Carbon Steel Wire,
Wire Gauge:BWG12-24.
Aperture:1/4”, 3/8”, 1/2”, 1”, 1.5”, 2”, 3”, 4” or Customized
Packing:Waterproof Paper+plastic Film
Certificates: ISO9001:2008 / CE / SGS
Surface treatment:PVC Coated
Ask for quoteDescription
Welded Wire Fence comprises with high quality low carbon steel wires electrically welded together, is a multi-purpose fence used for all types of farm and home applications. The welded wire mesh can be galvanized, PVC coated, or stainless steel welded wire mesh. The finished welded wire fence offer flat and uniform surface, firm structure, good integrity. You can easily erect welded mesh fence on a wide array of surfaces, more rigid than woven fences.
Advantages
- Compared with general iron wire, this fence are better in respects of anti-corrosive and anti-rust.
- This welded wire mesh can be individually cut and further processed. the mesh doesn’t come loose even if cut in parts.
- With strong welded points and bright luster, no limits to your craft skills and creativity. You can choose between different heights and lengths to suit your individual needs.
Specs
| Opening | Wire Diameter（ BWG） | |
| In ”inch” | In Metric Unit (mm) | |
| 1/4” x 1/4” | 6.4mm x 6.4mm | 22,23,24 |
| 3/8” x 3/8” | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2” x 1/2” | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8” x 5/8” | 16mm x 16mm | 18,19,20,21 |
| 3/4” x 3/4” | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1” x 1/2” | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2” x 1-1/2” | 38mm x 38mm | 14,15,16,17,18,19 |
| 1” x 2” | 25.4mm x 50.8mm | 14,15,16 |
| 2” x 2” | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note:
1,Standard roll length: 25m;width: 0.5m to 2m 2, Special specifications can be made according to customers requires. 3, Packing: in waterproof paper in rolls. Custom packing available at request. |
Surface Treament
Types of Welded Wire Fence Roll
Product Info
Packaging
For welded mesh rolls:.waterproof paper+ plastic filM;Nude package
For welded mesh panels:.Nude package;With plywood pallet + plastic film
Application
Welded Fence roll or panel is a multi-purpose fence used for all types of farm and home applications. A wide range of usages include cages, livestock panels, garden fencing ,prevent cracks and temporary pens.
Detailed application for example:
6 x 6mm hole – Mouse protection
13 x 13mm hole – Fruit cages, bird protection, engineering uses
13 x 25mm hole – Bird protection, enclosures for small animals
20 x 20mm hole – Rat and squirrel protection
25 x 25mm hole – Fox protection, cat and dog enclosures
50 x 50mm hole – Fox protection, dog enclosures
