3D Welded Wire Mesh Security Fence Panel with Powder Coated

Product Name: 3D Welded Wire Mesh Security Fence Panel

Accessories: post caps, clips, nuts and bolts.

Packaging :3D fence panels packed in wooden pallets and would be enveloped by plastic film then wrapped by tape firmly for the security of storage and transportation.

Certificates: ISO9001, BV,SGS

Ask for quote

Description

3D Welded wire bending fence also called curvy wire mesh fence or 3D security fence.3D Mesh fencing manufactured from 4mm or 5mm pre-galvanized wire, with the reinforcing V-bends increase fencing rigidity and stability. Hot-dipped galvanized, PVC coated, powder coated makes 3D Welded wire mesh fence more weather-resistant and anti-rust, Our 3D mesh fence standard color is RAL 6005 green, other colors can custom to suit your project either. The fence usually enveloped by plastic film and packed in wooden pallets, so you don’t need to concern about the storage and transportation.

Advantages

High strength and rigidity because of its triangular bending structure.
High adaptability as the fence can be installed in various ground, such as concrete, sandy, or rocky ground.
Easy to install, the curved fence panel can be connected with the post easily.
Beautiful appearance because of the V-shape bending and various colors.
Long service life, because of its firm structure and good coating corrosion resistance.

Specs

Fence Panel	Material	Low carbon steel wire
	Wire diameter	3.0mm-6.0mm
	Opening(mm)	50X100mm, 55x200mm, 50x20mm
	Height	1.03m, 1.23m, 1.53m, 1.73m, 2.03m
	Length	2.5m or as request
	Folds No.	2/ 3/ 4
Post Type	Square post, Round post, Peach post, Rectangular Post, Peach Post
	post OD.	4060mm, 6060mm
	post thickness	1.2mm, 1.5mm, 2.0mm
	post length	500mm longer than panel height to bury into the earth
Surface Treatment	Powder coated, PVC coated, Hot dipped galvanized
Color	RAL 6005(Green), RAL 9005(Black), RAL 7016(Gray), RAL 9010(White), RAL8014(Brown)
Other specifications can be customized as requirement.

Fence Panel

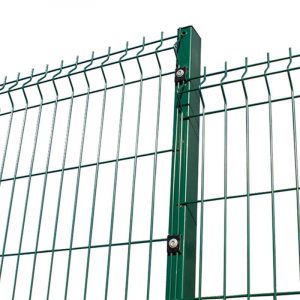

Post Style:The post of 3D wire mesh fence can be Square post, Round post, Peach post, Rectangular Post, Peach Post

Color Impression

Populare color of 3D wire mesh fence is usually RAL 6005(Green), RAL 9005(Black), RAL 7016(Gray), RAL 9010(White), RAL8014(Brown),other color is also optional .

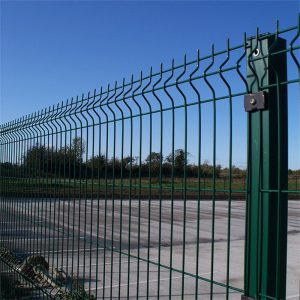

Product Image

Installation Info

PVC Coated 3D Welded Wire Mesh Security Fence Accessiors

Packaging &Shipping

3D fence panels packed in wooden pallets and would be enveloped by plastic film then wrapped by tape firmly for the security of storage and transportation.
