Livestock Prevent Hinge Knot Field Fence
Product Name: Hinge Knot Field Fence
Material: Low carbon wire, high carbon steel wire
Wire: 2.0mm-2.5mm
Height: 1.2m-2.45m
Length: 50-200m
Post: T post, Y post
Surface treatment: Hot dipped galvanized; Electro galvanized
Zinc coated:Electro galvanized: 10-20g/m2; Hot dipped galvanized: 30-300g/m2
Packing: With plastic film, bulk or with wooden pallets into container
Ask for quoteDescription

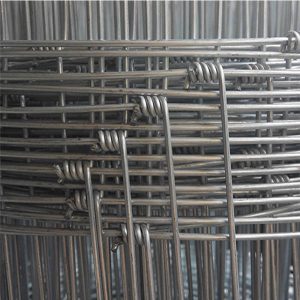

Hinge knotted fence also known as hinge joint field fence. It is woven by high tensile hot dipped galvanized wire. Galvanized steel stay wire are individually cut and wrapped on the horizontal line wire, the robust hinge joints eliminated unwieldy wraps, twists and ties. The unique sturdy but flexible structure provides maximum strength and tensile strength to with stand impact from horse, cows, pigs, deer and goats.
The height, length, and wire diameter are all can be customized by your request.
Advantages
- Simple structure with less weight
- Easy to maintain using minimal cost.
- Easy to install in conjunction with timber stake or other post
- Superb rust and corrosion resistance owing to its heavy zinc coating.
- Available in various spacing configurations to keep horses, sheep, cattle, hogs and other animals.
Specs
| Mesh size | G.W.(kg) | Wire diameter(mm) | |
| 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.0mm/2.5mm |
| 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.0mm/2.5mm |
| 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.0mm/2.5mm |
| 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.0mm/2.5mm |
| 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.0mm/2.5mm |
| 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.0mm/2.5mm |
| 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26.0 | 2.0mm/2.5mm |
| 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.0mm/2.5mm |
| 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.0mm/2.5mm |
| 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.0mm/2.5mm |
Drawing of hinge knot field fence
Product Detail
Packaging &Shipping
Application

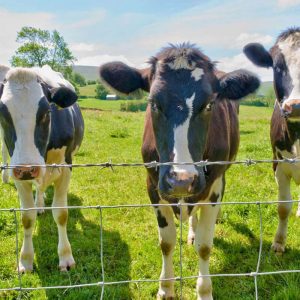

Hinge knotted fence is widely used for fencing of various animals such as cattle, horse, sheep and deer. Besides, they also can be used with barbed wire or chicken wire for farm fencing, garden fencing, road fencing, forest fencing and so on.
