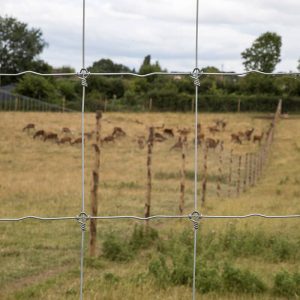

Fixed Knot Woven Wire Field Fence for Deer
Product Name: Fixed Knot field fence
Material: low carbon steel wire, middle carbon steel wire
Height Range: 0.6 to 2.5 meter available.
Vertical wire distance: 50, 100,150,200,250,300,350,400mm available
Length: 50 Meter, 100 Meter and 150 Meter available.
Wire Material Finishing: Hot Dipped Galvanized, Electro Galvanized
Surface treatment: Hot dipped galvanized, electro galvanized
Zinc coated:Electro galvanized:10-20g/m2;Hot dipped galvanized: 30-300g/m2
Packing: packed by plastic film and wooden pallet
Ask for quoteDescription
Traditional field fences use a hinged joint knot to join the vertical and horizontal line wires and that can cause the knot to slide. A fixed knot provides a separate piece of wire to lock together vertical stays to line wire, increasing the strength of the fence. This also allows for wider spacing between posts, thus requiring fewer posts. A fixed knot fence will not break under heavy pressure, unless the wire itself breaks. This will save time and money on maintenance of the fence.
Fixed knot fencing is also available in a varity of sizes and spacing. The wire is covered with a tough layer of galvanizing and is available in Commercial, Class 1, and Class 3 zinc.
Advantages

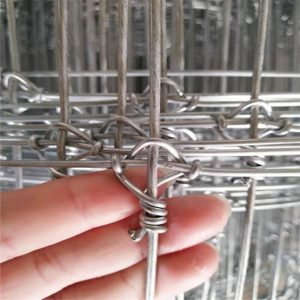

This knot uses a separated wire to wrap the vertical and horizontal wire together, which increases the strength of the vertical wire. The fixed knot fence is simple in structure and less weight, stronger than square knot, so this knot can prevent the crash of livestock and resist heavy snowstorm.
Specs
Main specification
|
Number |
Number of |
Height of fence |
Space between |
Wire gauge |
Roll size |
|
1 |
13 |
48 inch |
3 inch |
12 – 1/2 |
48 inch high × 200ft. long |
|
2 |
13 |
48 inch |
6 inch |
12 – 1/2 |
48 inch high × 300ft. long |
|
3 |
9 |
49 inch |
6 inch |
12 – 1/2 |
49 inch high × 330ft. long |
|
4 |
9 |
49 inch |
12 inch |
12 – 1/2 |
49 inch high × 330ft. long |
|
5 |
10 |
60 inch |
6 inch |
12 – 1/2 |
60 inch high × 330ft. long |
|
6 |
15 |
61 inch |
3 inch |
12 – 1/2 |
61 inch high × 200ft. long |
|
7 |
15 |
61 inch |
6 inch |
12 – 1/2 |
61 inch high × 330ft. long |
|
8 |
17 |
75 inch |
6 inch |
12 – 1/2 |
75 inch high × 330ft.long |
|
9 |
14 |
78 inch |
6 inch |
14 |
78 inch high × 330ft. long |
|
10 |
16 |
90 inch |
6 inch |
14 |
90 inch high × 330ft. long |
|
11 |
20 |
96 inch |
3 inch |
12 – 1/2 |
96 inch high × 165ft. long |
|
12 |
20 |
96 inch |
6 inch |
12 – 1/2 |
96 inch high × 330ft. long |
|
13 |
20 |
96 inch |
12 inch |
12 – 1/2 |
96 inch high × 330ft. long |
|
14 |
23 |
120 inch |
6 inch |
12 – 1/2 |
120 inch high × 330ft. long |
Popular specification
1. HT-fixed knot deer fence, #2 13/48/6/12.5/330 class 3 galvanized, and #12 20/96/6/12.5/330 class 3 galvanized.
2. Deer fencing wire 2 inch by 6ft by 330ft/roll with black plastic coated, and live stock panels, clips and accessories for garden use.
3 .Deer fence 96 inch /120 inch, 14 gauge wire, 8 feet T posts for diagonal bracing with 75\” height wire, and clips for fencing out deer.
4 .6 feet high deer fencing protects garden and keeps raccoon & skunk out.
Drawing of fixed knot fence
Tips for fixed knot deer fences
While you are selecting deer fences,you need consider height or width as a vital factor. If its population is heavy in your area, you should pay more attention to the upright height of the deer fencing.Because White-tailed deer can jump almost eight feet high. Or you can choose a shorter, slanted fence with 45-degree angle or add a few barberd wire strands on top for extra height.
Product Detail
Application
1. Protect ranch, farm.
2. Protect the forest and environment.
3. Field fence for livestock.
4. Isolation of livestock and projects
Ask for quote
