Remarks:Pouplar color of the double wire mat fence are RAL 6006 Moss Green ,RAL7016 anthracite grey,and RAL 9005 matt black ,other colour is also reliable as request
868 or 656 Double Wire Mesh Fence for Garden
Product Name: Double Wire Mesh Panel 2D Twin wire Fence
Wire diameter: 8-6-8mm 6-5-6mm.or as your requirements
Surface finish: Hot dipped galvanized; powder spraying coated.
Power coating: The thickness of power coating is around 150 microns usually.
Hot dipped galvanized after welding: The zinc coating is about 500g/m2 (70 microns)
Package:Fence panel is packed with plastic film and metal pallet;
Fence post: pack with a plastic bag and metal pallet;
Accessory is pack with small plastic bag + carton box.
Ask for quoteDescription
Double wire mesh fence it is a flat fence panel, normally construct from two horizontal wires and one vertical wire, so it is extremely stable and robust. Besides, No V-bend, for this reason ,it can directly installation without worrying about waviness problems. more over ,Hot-dip galvanized and powder-coated Increases the rust protection of the double wire fence, thus the zinc layer lasts about 30 years under normal weather conditions. on the other hand,You can transformed the fence system into an opaque garden fence by weaving privacy strips into the double or single rod mats, in this way ,creates a high security environment for your private propert
Advantages
- High strength and rigidity because of its two horizontal wires .
- Easy to install as the fence can be installed with accessories like brackets and clamp bars.
- Beautiful appearance because of the uniform mesh and various colors.
- Long service life, because of its good coating corrosion resistance.
Specs
| Welded Double Wire Mesh Fence panel | |
| Wire Diameter | 8/6/8mm, 6/5/6mm, 5/4/5mm |
| Mesh Size | 50*200mm /55*200mm/50*150mm/55*100mm, can be customized |
| Panel height | From 0.4m – 3.03m |
| Panel Width | 2.0m, 2.5m as standard |
| Surface Treatment | Epoxy polyester powder coated |
| Fence Post | |
| Post Type | Rectangle post/Rectangle post/Peach post/Round post |
|
Dimensions of Type ( 4 options with different sections) |
•60x60mm and 50x50mm SHS steel Post •40x60mm RHS steel post •50×70 and 70×100 Peach shape post •48mm and 60mm Round section post |
| Surface Treatment | Pre-Galvanized then powder coating |
Fence Accessories
| Clips/Clamps
(Link Post and Panel) |
Metal Clips and Plastic Clips, there are over 6 type as choice |
| Rain hat or caps for posts | Metal caps or plastic caps |
Remarks:The Panels and posts are jointed together with bolts or rivets, using the steel flat bar or special steel clamps, all nuts are self-locking.This also can be designed as the special clients’ requests
2D Twin Wire Fence Panel

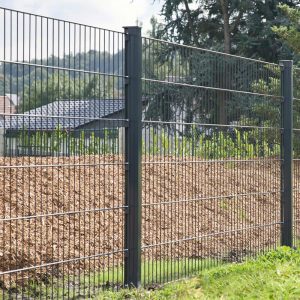

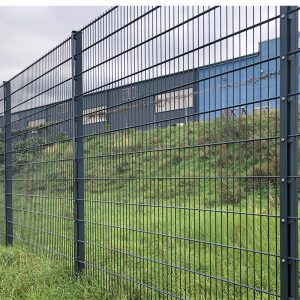

Product Image
Installation Info
Application
Double wire mesh perimeter fence for industrial or commercial premises and sport pitches where a strong mesh fencing system is required. It’s also widely used for roads, freight yards, airports, sport fields and public districts.
